Conductor: Annealed copper, Class 6 or finer stranding (tinned on request)

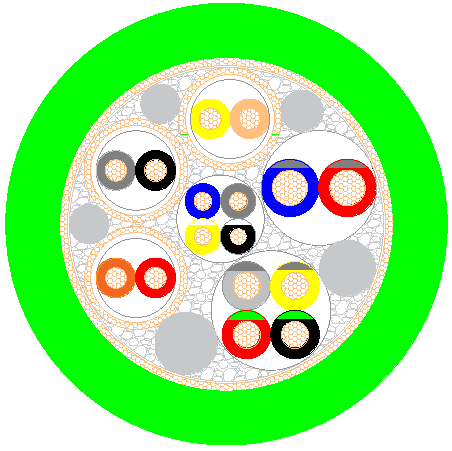

Insulation: HDPE-insulated cores; 3×(2C×0.14mm²) sub-units with polyester tape, drain wire, spiral shield and TPE jacket
Filler: Cotton yarn
Separator: Aluminum foil
Shield: Tinned copper braid, 85% coverage
Separator: Non-woven tape
Jacket: Thermoplastic polyurethane (TPU)
Oil Resistance: Meets EN 50363-4-1
Flame Retardancy: Meets IEC 60332-1-2
Color: Green
Outer Diameter: 10.0 ± 0.3 mm
Drag-Chain Life: 10 million cycles
